Digital Artwork Scanners
An innovative and world renowned range of Digital Artwork Scanners for scanning any size artworks in different -wavelengths including X-Ray and Infra-Red - our systems are used in many of the principle galleries and art restoration centres in the world. We install large format scanning rigs, lighting systems and advanced imaging set-ups for museums, archives and heritage preservation. We specialise in turnkey automation solutions, complete engineered and supported systems combining imaging, motion control, software and integration, designed and built in the UK.View
£0.00 inc. VAT £0.00

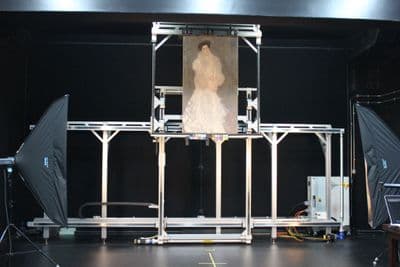

SatScan Large Scale Multispectral & Photography Easel Scanner (Artwork Moves)
A large artwork Easel with motorised frame that carefully holds and accurately moves the artwork of typically up to 5m x 5m in size in front of a range of fixed photographic and multispectral imaging devices which can include visible light cameras, infra red cameras, UV illumination, XRF, X-ray and spectrometers.
Often featured on the successful BBC art programme "Fake or Fortune"
£0.00 inc. VAT £0.00

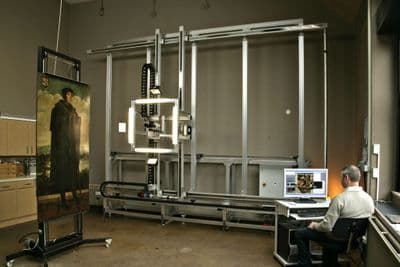

SatScan-IM Large Scale Multispectral Easel Scanner (Moves Scanning Instruments)
A large scale system which precisely moves a range of data acquisition devices over mounted artwork in a static easel. The scanning devices are typically photographic cameras, infra red cameras, multispectral imaging devices, UV & other illumination and the system permits use of XRF and spectrometers.
The system creates a mosaic of images including data co-ordinates which can be merged into a perfectly stitched full size image.
SatScan IM is often featured on the successful BBC art programme "Fake or Fortune"
£0.00 inc. VAT £0.00
SatScan - Dynamic Z Focus Module
Z Axis distance tracking and measuring Stage.
A Dynamic Motorised Range Tracking Stage - which automatically reads the instrument distance to the moving surface and drives the Z stage to maintain a micron accurate distance. The table is ideal for applications where instrument fine focal depth needs to be maintained, or profile data is to be aquired.
Can be used as a autonomous system for any application or combined with the SatScan Easel system to create 3 axis XY & Z
£0.00 inc. VAT £0.00

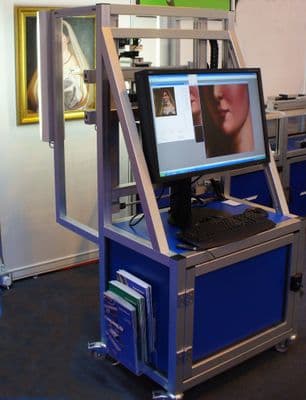

SatScan-P Portable High Resolution Easel Scanner (Moves Scanning Instruments)
A compact, portable system which precisely moves imaging devices over mounted artwork in a static easel. The scanning devices are typically photographic cameras, infra red cameras, multispectral imaging devices, UV & other illumination and the system permits use of XRF and spectrometers.
£0.00 inc. VAT £0.00
SatScan-X Large Scale X-ray Easel Scanner (Moves Artwork)
A large open frame artwork easel mounted onto a motorised frame that carefully holds and accurately moves the artwork of up to 4m x 4m in size in front of a range of an X-ray source and rear mounted receiver. Optional adjustable motorised X-ray receiver positioning system.
£0.00 inc. VAT £0.00
SatScan- IR Large Scale Infra Red Easel Scanner (Moves Artwork or Instrument)
The SatScan system can be configured as either AM or IM systems, meaning you can chose whether the Art moves or the IR instrument moves during the scanning process.
A studio mounted motorised Easel that carefully holds Art or Infra Red instrument to accurately gather IR data from the artwork. Typically Scanning areas of up to 5m x 5m, each system is custom built and designed fit available room size and can accommodate your choice of IR device, and heat illumination source. Options include dynamic motorised Z axis to maintain perfect image focus.
System creates a mosaic (tiles) of images including data co-ordinates which can be merged in a perfect stitched full size image.
£0.00 inc. VAT £0.00

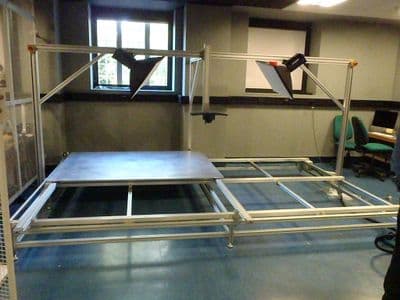

SatScan-HM Large Scale Multispectral / Photographic Easel Scanner (Moves Sample Under Imaging Device )
A large imaging Easel Platform horizontally mounted onto a motorised frame that carefully supports and accurately moves the sample of up to 4m x 4m in size (depending on studio space) beneath a range of fixed photographic and multispectral imaging devices which can include photographic cameras, infra Red cameras, UV illumination, XRF and spectrometers. The system is capable of positioning samples with micron accuracy ensuring perfect results / Data with every operation.
Ideal for scanning delicate samples that cannot be mounted vertically. Samples include:- Maps, Books, Manuscripts, un-mounted / delicate art, Ancient Scrolls, Papyrus, Parchment etc.
