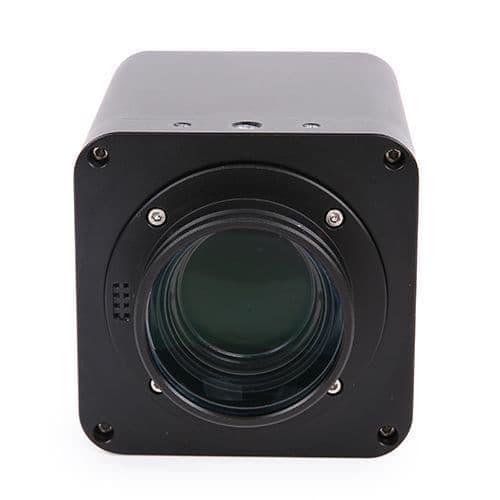

AFDM is a series of electric controlled continuous zoom and autofocus all-in-one digital microscope with a large field of view by ToupTek Photonics. It is integrated with HDMI/USB/ETH/WiFi camera, Electric Controlled Continuous Zoom Auto-focus Objective and LED Integrated Illumination Light. AFDM is the abbreviation of Auto-focus Digital Microscope. Different products in the AFDM series can be formed with different part to satisfy the application requirement.

AFDM can be assembled with various brackets or arms and offer a continuous zooming ratio with different lens. AFDM also supports autofocus mode and manual focus mode.

AFDM comes with a high-performance SONY CMOS sensor. It also has an embedded ARM core, allowing the camera to be connected directly to the HDMI monitor. The camera has XFCAMView software built within it, including Camera Control Panel, Auto Focus Control Panel, Measurement Toolbar, and Synthesis Camera Control Toolbar. Users can directly control the camera and perform various operations through a USB mouse. The images and videos captured by AFDM can be saved on an SD card for on-site analysis and follow-up research.

AFDM can be widely used in industrial inspection, medical observation, teaching and scientific research, automation system, and other fields.

AFDM412 supports HDMI/USB/ETH/WiFi control and video output (ToupView). The frame rate of the output is 4K/30FPS, and the zoom range is 1X~18X. It also supports electric zoom and auto focusing.

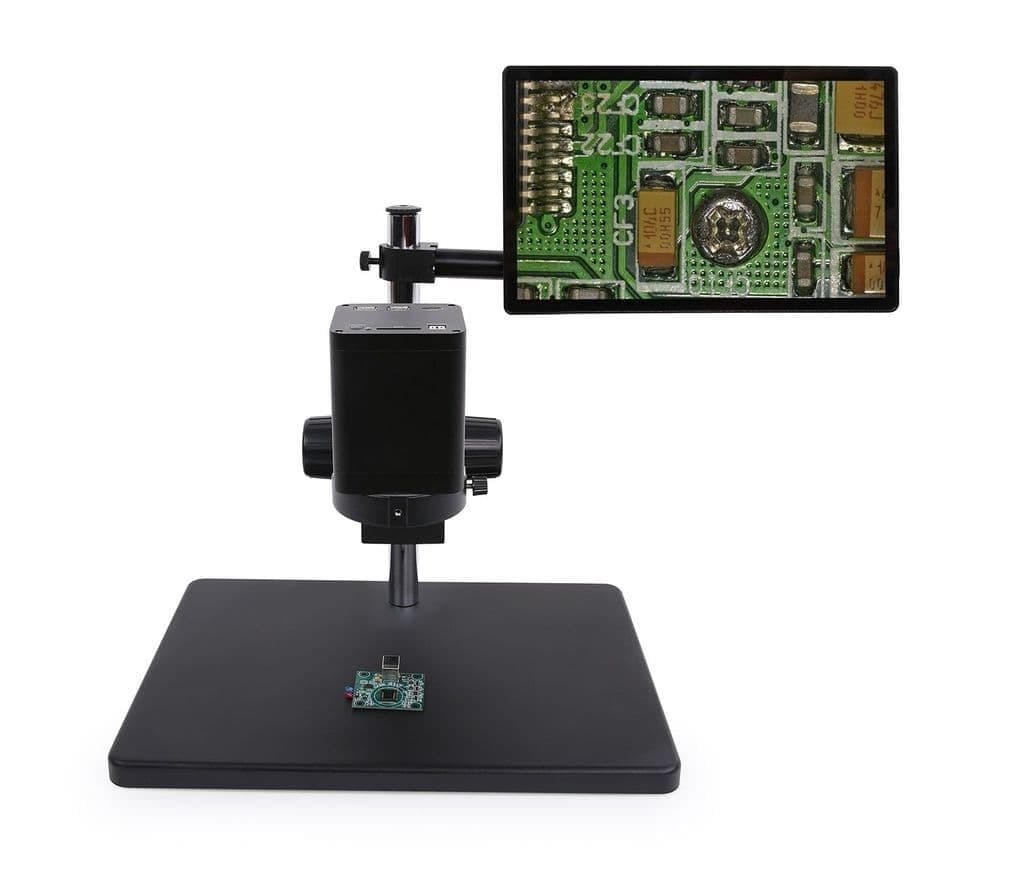

(Stand and monitor are optional accessories and are not included)

AFDM Camera Module Datasheet

AFDM Lens Module Datasheet

1X and 18x are defined as the normalized magnification, which is only used to represent the relative relationship between the lowest and highest magnification. Here, the normalized equations are 1x = 0.021/0.021; 18X=0.39/0.021;

AFDM412 Characteristics and Specifications

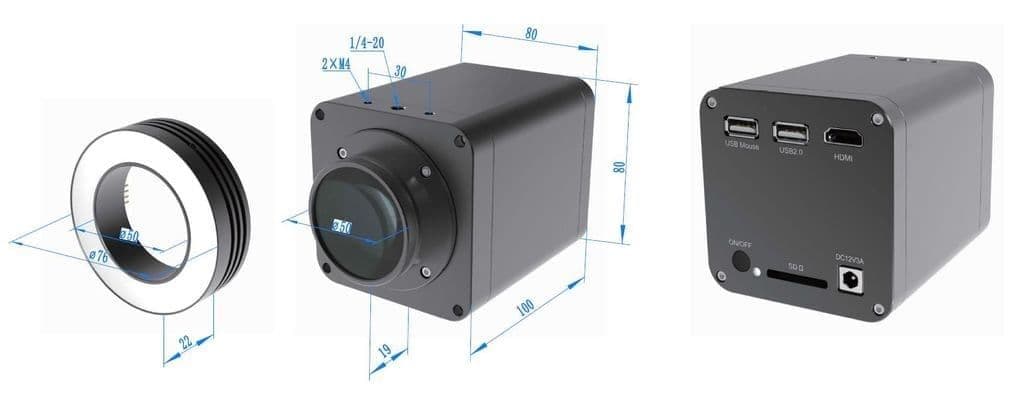

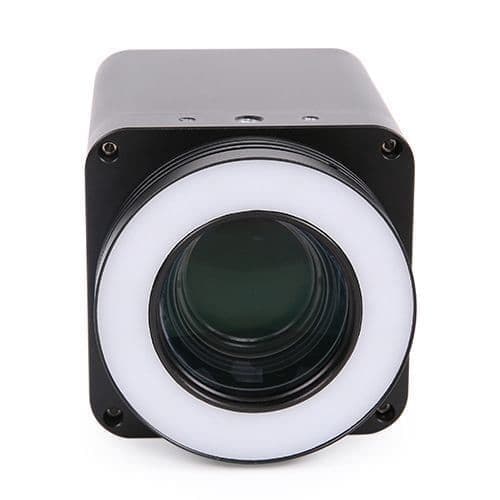

The AFDM412 comes with H4KPA HDMI camera, EMZO-18XA-250 lens and DRL-5076A-NPC light source;
