CDTSQ-40 Precision Motorised, Single Axis Linear Actuators 100mm-1500mm Load 10Kg
CDTSQ-40 Motorised 1 Axis Stage Series

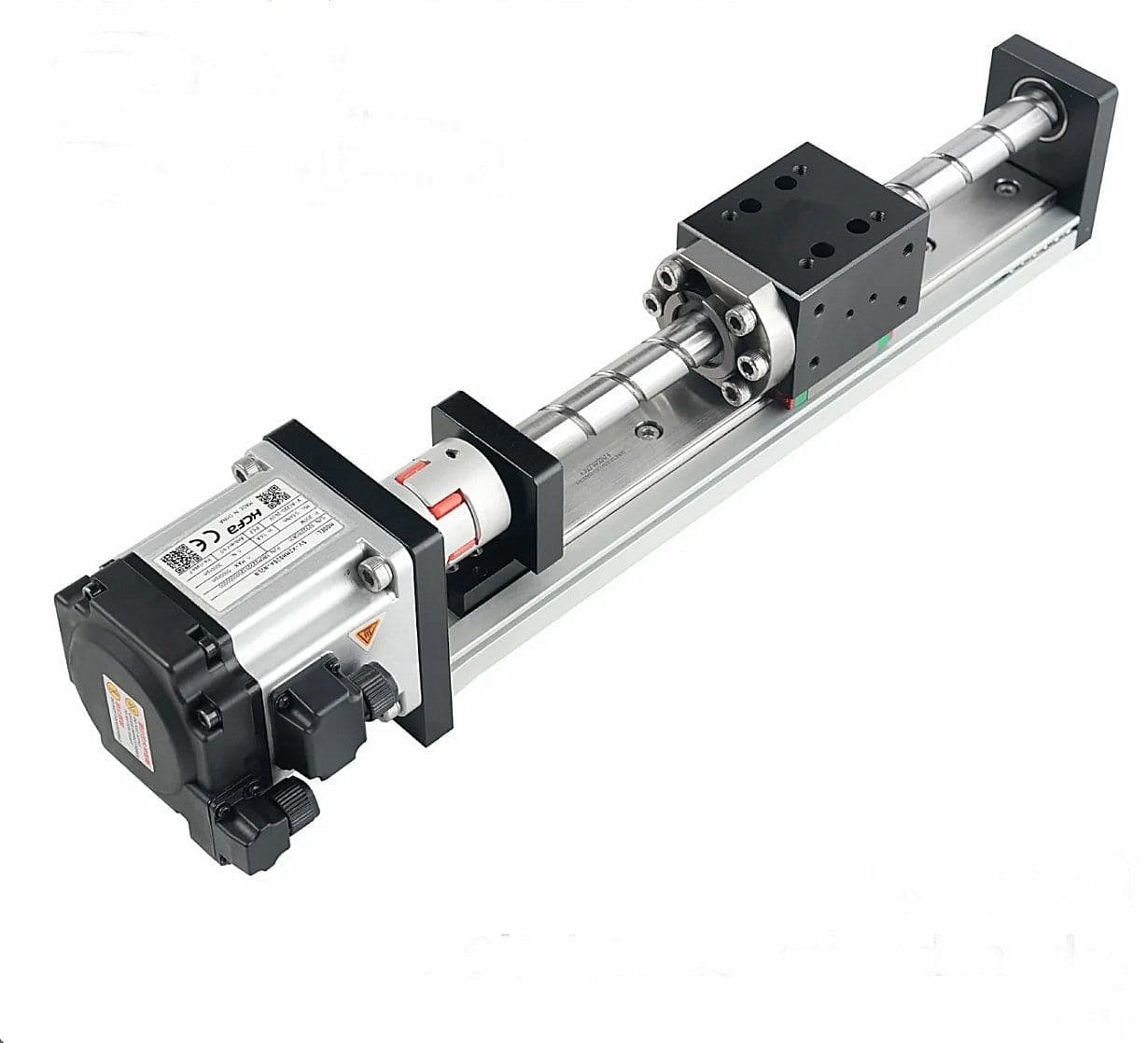

A robust heavy duty Ball Screw driven single axis linear actuator. Featuring a range of axis movement (strokes) from 100mm to1000mm. Including high precision Micro Stepping bipolar stepper motor attached to a motor shaft and coupling driving a Ball Screw.
Suitable for linear applications where precisely moving a load in a known profile or acceleration/speed is required.
Applications include:- Camera focus, Scientific instrument placement, repeat industrial movement. Z component for product placement.
Create your system & price by selecting options 1-5
1) Movement Range (Stroke)
We are able to supply standard axes movement Strokes (the amount the Carriage moves ) lengths of 100mm to 1000mm. Please select the stroke you require from the pulldown list.
Longer options are available (and are our speciality - see our artwork scanners up to 6m).
2) Maximum Load/Payload
The CDTSQ-40 is suitable for loads up to 10Kg Horizontal (this is pre-selected) 6Kg Vertical
3) With or Without Stepper Motors
Without:- No motors will be provided, use this option If you wish to build your own system using your own motors etc.
With:- The Actuator will be provided with a mounted NEMA 23 or 34 Stepper motor
4) Drives, Motion Controller, Power Supplies and Cabinet (box)
The CDTH-1S34:- Is a housing which comprises a single Stepper Drive & Power supply for 1 Axis - it is supplied by signals you provide from your own controller device, such as PC, PLC or dedicated motion Controller.
The CDTH-1S134C:- Is a housing which comprises a single Stepper Drive & Power supply for 1 Axis & Programmable Controller device. This solution represents a full package featuring everything you will need to drive, programme and control motion.
Other options are available for servo's & axis feedback. Please contact our Technical support team.
Example enclosure to accommodate Drives & Controller (CDTH-1S34 & CDTH-1S134C )
5) Limit Switches
These are fixed to the linear Actuator at a position of your choice & triggered when the moving carriage reaches that set position in travel, it can send a signal to the controller device. Typically used to set Datum (Home) or end of travel. Can be used in an emergency as stop signal device. Two switches are provided for a single Actuator.
SPECIFICATIONS:
Number of axes: 1
Movement Control: Motorised Stepper -Servo Option
Positioning Accuracy: 0.1mm
Drive Mechanism: Steel Ball Screw
Carriage: Tapped Alloy Platform
Axis Linear Profile/Slide: Material: Extruded Aluminium
End Stops: Buffer
Recommended Speed: Max. 200mm/s (depends on Axis size & mass)
Load Weight: Horizontal 10Kg - 6Kg Max Vertical
Weight: Dependant on Axis Sizes
Options: Datum / Limit Switches, Encoders, Specialist Couplings to suit a Variety of Motors, Gearing & Controllers, Drives (stepper amplifier) Servo Motor.
Please speak to our Technical team for bespoke configurations
Due to our policy of continuous product development and subject to the selected product, the exact appearance/layout of the system may change from that shown.
